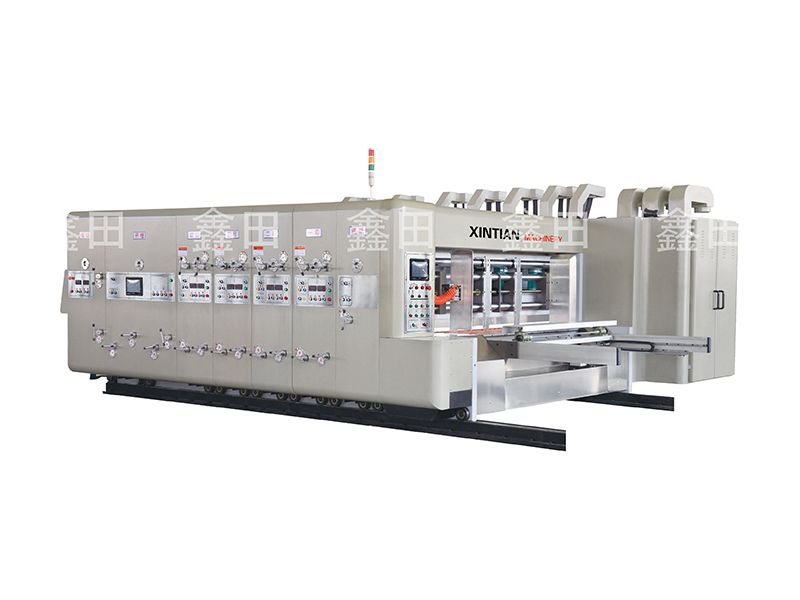

XT-G High Speed Printer Slotter Die Cutter Machine

Function and Characteristics:
■ International famous brand electric parts and computer software was used in the whole machine ,top-quality and steady; Computer order storage and adjustment , faster order update and convenient operation.( It can storage the 999 order in the computer).
■ Complete machine baffle and important parts used the temper for decrease the metal internal force ; and that parts was made by high precision process center and grinded by digit-controlled grinder.
■ All the transmission axle and roller are made by the high-quality steel, temper, and dynamic balance; plated with rigid chrome and grinded surface.
■ All the transmission gear was used the 20CrMnTi alloy steel, which is grinded after heat-treatment, rigidity HRC58-62 , and it was made by rubbing ,6 grade precision , it still maintains the high topping precision.
■ The transmission place (connected with the axle and gear), which adopts the hand-free connecting ring to eliminate the interval , suitable for long-term high speed running.
■ The important transmission bearing was adopted strengthen model bearing ,handy to maintenance, suitable for long-term to used.
■ The whole machine undergoes the spray lubrication , intuitionist show setting ,setting the double oil pipe balance system
■ The whole machine adjustment presetting function, feeding. printing, slotting ,die cutting,automatic zero setting ,memory automatic reposition.
■ The whole machine working interval adjustment was adopted free spanner , which is fast to adjustment , fast and convenient to adjustment.
■ The mainframe was control by the frequency conversion, start-up, running more smooth .
■ Can choice servo motor free pressure or lead edge feeder suction
■ Setting the ink alarm device ,real-time monitoring of the work status of the ink supply system.
■ The machine has a limit and over travel display.
■ The optional machine gap electric adjustment.

Product Details

Main Technical parameter:

SERIAL	WYAZS NAME
		UNIT	WYAZS
		UNIT	900×2000(Φ304)	1050×2000/2400(Φ360)		1200×2000/2400(Φ420)		1400×2400/2800(Φ480)		1600×2400/2800(Φ536)
1	Inboard width size	mm	2600	2600	3000	2600	01 3000	3000	3400	3000	3400
2	Max paper size	mm	950×2200	1050×2200	1050×2600	1270×2200	1270×2600	1470×2600	1470×3000	1670×2600	1670×3000
3	Max printing size	mm	900×2000	1000×20001000×24001		1200×20001	1200×24001	1400× 2400 D	1400×2800	01600×2400	1600×2800
#	Skip feeding size	mm	1150×2000	1250×2000	01250×2400	1450×2000	1450× 2400 1	1650×2400	1650×2800	1850×2400	1850×2800
	Min finish size	mm	290 ×640	300 × 640	300×640	320 ×640	320 ×640	380×720	380×720	400 × 720	400 ×720
6	Thicknessof printing plate	mm	7.2	7.2	7.2	7.2	7.2 2	7.2	7.2	7.2	7.2
7	Complete machine baffle thickness	mm	70	70	70	70	70	70	70	70	70
8	Speed	PCS/min	0-350	0-300	0-300	0-260	0-260	0-220	0-220	0-200	0-200
9	Printing precision	mm	four colors ±0.5	four colors ±0.5	four colors ±0.5	four colors ±0.5	four colors ±0.5	four colors ±0.5	four colors ±0.5	four colors ±0.5	four colors ±0.5
10	Sloting precision	mm	±1.5	±1.5	±1.5	±1.5	±1.5	±1.5	±1.5	±1.5	±1.5
11	Max slotting depth	mm	230	280	280	300	300	350	350	410	410
12	Min slotting interval	mm	Clock wise: 160×160×160×160 260×60×260×60	Clock wise: 160×160×160×160 260×60×260×60		Clock wise: 160×160×160×160 260×60×260×60		Clock wise: 180×180×180×180 280×80×280×80		Clock wise: 180×180×180×180 280×80×280×80

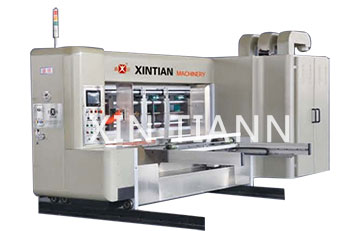

Functions of Feeding Department:

■ Electrically controlled the connecting and separated for the every unit with alarm to ensure the operator safety during its proceeding.
■ The left and right baffle, kick feeding, back baffle was adopted electric and computer numerical control adjustment.
■ Brush and the top suction device at the inlet which can clear away the impurity from the paper face to improve the printing quality.
■ Mainframe was controlled by the frequency conversion ,start-up and running steady , which can save the power about the 30%.
■ Infrared photoelectricity counter can presetting the order paper quantity .
■ One lock function for whole machine ,which can avoid the damaged the machine with error operation( Main motor start running ,every unit will be lock automatic )
■ Option the continuum or skip feeding .
■ Pressure model elasticity feeding rubber roller ,which can not to damaged the strength for corrugated cardboard; Down feeding roller :hard Chrome plated and embossed.
■ Outside baffle and slotting move simultaneity it can finished the adjustment for the mend side and not mend side , which is save the time ,and it add the flap function, which made the cardboard orientation more exact, avoid to waste.
■ 10' Color touch screen can control feeding ,printing ,slotting ,die cutting with zero at one time ,memory reposition, the running speed can 60,80,100,120 fix speed running.
■ Option:kick feeding paper or lead edge feeding paper.

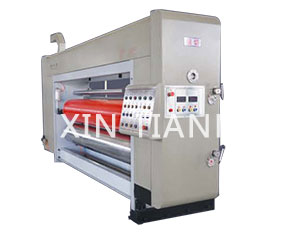

Functions of Printing Department:

■ All the axle and roller was used the high grade steel, computer dynamic balance; eliminate the centrifugal effect, plated with rigid chrome and grinded surface.
■ Printing phases was adopted the planetary gear structure ,PLC touch screen control and the electric digit 360° adjustment(stop, running can adjustment)
■ Printing roller landscape orientation was adopted the touch screen control, and electric digit adjustment,the adjustment scope is 10mm.
■ Oil inspect function, alarm ring when need oil .
■ Hanging plate device, total hanging and half hanging slotting notch , foot switch control the clockwise and counter-clockwise, fast to fixing and take down the plate.
■ Fixing the oil interval, printing pressure roller ,lead roller interval were used the fast free spanner adjustment.
■ Printing phase fix was used the pneumatic brake structure ,the brake structure will stop the mainframe running when the every unit separated, which can keep the origin gear fix position can not move.
■ Reposition function, computer memory printing plate position, which can automatic reposition when scrub the plate.
■ Rubber roller,and the surface wrapped wear rubber,special grinding effect of transfer ink.
■ Steel anilox roller, steel face chrome, pressure the anilox and rigid chrome, (option ceramic anilox roller).
■ Pneumatic uplift plate device, the anilox roller break away pneumatic, smooth the oil automatic when the mainframe stop, it can prevent the oil dry.

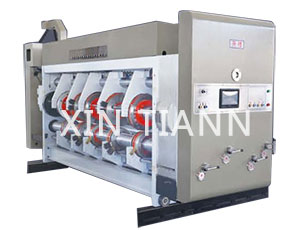

Functions of Slotting Department:

■ All the carton size, height and phase was adjustment by computer ,man-machine interface, save time and energy, improved the working efficiency, the computer can storage the 999 order.
■ Double slotting structure , big diameter pressure wheel, which can made the best effect for the boxes.
■ Slotting tool rest ,pressure wheel ,repair side knife was adopted the ball bearing for straight line guide rail when horizontal movement, which can made the high precision, more flexible movement and accurate orientation for the upper and lower cutting , lengthen the service life for the scraper.
■ The elastic tangential scraper structure could cut off three and five layer cardboard without any adjustment.
■ Slotting knife was choice with the high quality alloy steel, which made the rigidity and tenacity was best when heat treatment, it can suitable long-term used.
■ It could be equipped with portable punching die holder.

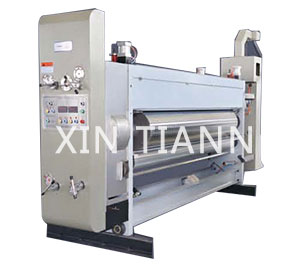

Functions of Die Cutting Department:

■ The die cutter phase is controlled by computer and electric digit.
■ The die cutting scraper could be adjusted horizontally with computer and electric digit control ranging from 10mm.
■ The glue roller cuts the trimming mechanism and the cushion could be used for many times and save the use cost to a great deal.
■ The cushion roller mechanical, horizontal and facility from +30mm to -30mm could raise the service life of the cushion of the die-cutting.
■ Used the die cutting equalizer, providing wire-speed compensation, be ensure the carton forming same size after repair the rubber.
