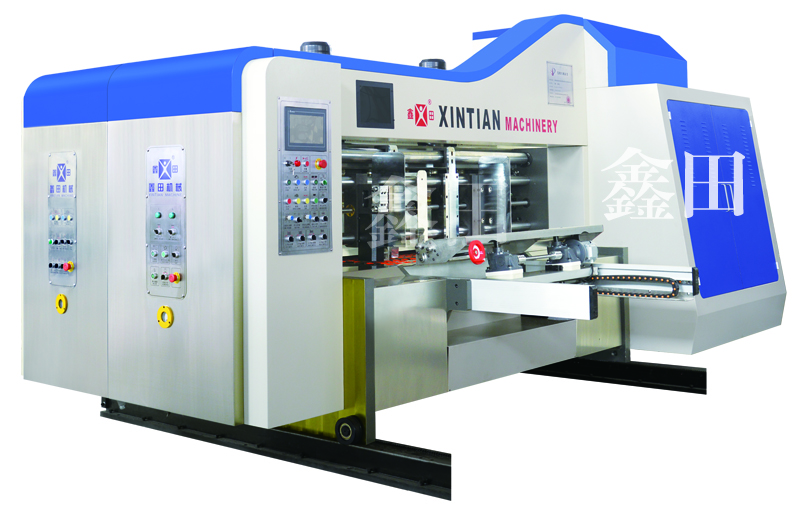

Function and Characteristics:

■The electric control machine is clutched with alarm, and the drive shaft is attached to the friction clutch to avoid error operation and damage the machine

■Pressure interlocking device, Main motor frequency control attached to the motor boot protection device.

■China Invention Patent Technology: Extended Servo Free Pressure lead edge feeder system: Multi-row Paper Wheel, each row of paper wheel with a servo motor independently drive, to achieve extended paper, greatly improve the compressive capacity of the carton. Negative pressure suction auxiliary paper can be different depending on the paperboard bending conditions, and the variable frequency adjusts the vacuum negative pressure value, ensuring that the different directly flute paper and different shape flute into machine smooth.

■It have the interlocking system on the machine back, control the emergency stop. The servo controller is used to control, the action is fast, labor-saving.

■The left and right side baffles,the back baffle was adjustment by elelctric, the front baffle gap is adjusted by synchronization, skip feeder system (can be choice continuous or skip feeder ).

■The touch screen can control: Automatic correct position, order memory storage, paper feed counter setting, display production quantity and automatic paper row function.

■Paper feed roller gap electric, computer dual-purpose adjustment, adjustment range 0 to 12 ㎜。

■Paper feeder unit and die cutting, slotter unit both electric automtic zero, using an automatic zeroing device, test printing two sheets can be adjusted to the correct position, reduce cardboard waste.

■Die cutting department (free version slotting computer adjustment structure)

■Die roll cast steel material, high-speed dynamic balance correction, increase operation stability, surface high-frequency quenching, grinding, hard chromium plating.

■The distance between the fixed screw holes of the die cutter is 100×50 mm, and the height of the applicable die cutter is 25.4 mm.

■Wooden die thickness: 16～18 mm (for three-layer board) 13～15 mm (for five-layer board).

■Anvil rubber pad roller cast steel material, high-speed dynamic balance correction, increase running stability, surface grinding, hard chrome plating.

■Electric adjustment of the gap between the die-cutting rollers, imported original anvil rubber pads, mechanical lateral ±30mm travel device, die-cutting equalizer automatically compensates the linear speed, which can make the die-cutting rubber pads wear evenly and prolong the service life.

■Planetary gear structure, electric digital 360°adjustment of die-cutting phase (adjustable during operation and stop), electric adjustment of lateral position, adjustment distance ±7mm.

■Pre-pressing, forming, slotting knife edge computer one-key synchronization adjustment.

■Special-shaped die-cutting board can be used interchangeably with plate-free die-cutting slotting (specific parameters are negotiated and determined according to actual conditions)
