 Function and Characteristics:
■High precision, six colors 0.3mm printing accuracy; High wire, 140LPI printing wire; High efficiency, high printing, drying, coating, drying again, slotting, die cutting, waste cleaning, piling,
counting whole complete; Low consumption, multi-stage risk control, multi-stage temperature control, frequency conversion with servo, saving electricity.
■Whole machine electric parts was choice the international famous brand , good quality and steady.
■Complete machine baffle and important parts was used the temper for decrease the metal internal force, and that parts was made by high precision process center and grinded by digit-controlled grinder.
■All the transmission axle and roller are made by the high-quality steel, temper, and dynamic balance; plated with rigid chrome and grinded surface.
■All the transmission gear was used the 20CrMnTi alloy steel, which is grinded after heat-treatment, and it was made by rubbing , it still maintains the high topping precision.
■The whole machine undergoes the spray lubrication , intuitionist show setting ,setting the double oil pipe balance system
■Whole machine working interval adjustment, free-spanner self-lock worm wheel and worm device , fast and convenient.
■Can choice servo motor free pressure or lead edge feeder suction
■Setting the ink alarm device ,real-time monitoring of the work status of the ink supply system.
■One-button antomatic pre-stick printing plate, computer can adjustment every printing unit printing plate to center of the cardboard according to the width of the cardboard, reduce waste
cardboard when adjustment the machine.

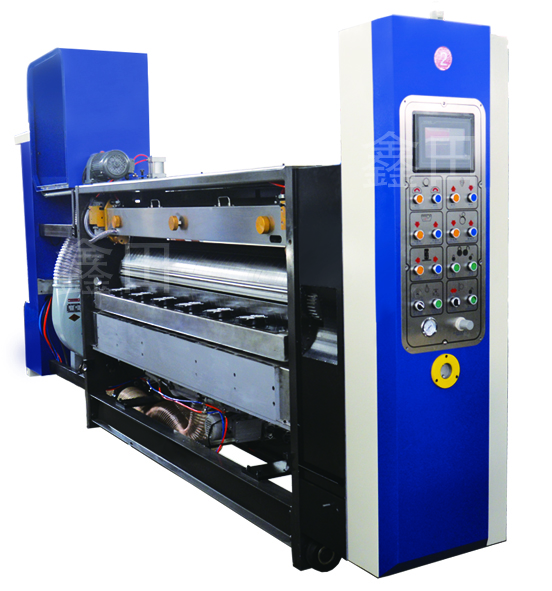

Function of printing Department：
■All the axle and roller was used the high grade steel, computer dynamic balance; Eliminate the centrifugal effect, plated with rigid chrome and grinded surface;
■Printing phases was adopted the planetary gear structure , the electric digit 360°adjustment, show the digit (stop, running can adjustment);
■Printing roller landscape orientation was adopted the touch screen control, and electric digit adjustment, the adjustment scope is 10mm;
■Pneumatic pump supply the ink;
■Hanging plate device, total hanging and half hanging slotting notch, foot switch control the clockwise and counter-clockwise, fast to fixing and take down the plate;
■Fixed ink gap, printing pressure roller gap using computer adjustment;
■Printing phase fix was used the pneumatic brake structure ,the brake structure will stop the mainframe running when the every unit separated ,which can keep the origin gear fix position can not moved.
■Reposition function, before reposition,company memory printing position,it can automatic reset after reposition.
■Ceramic anilox roller adopts thick wall high quality seamless steel tube surface coated ceramic fine grinding, laser engraving anilox, printing fine, wear resistance, long life.
■Pneumatic uplift plate device, the anilox roller break away pneumatic ,smooth the oil automatic when the machine not printing, it can prevent the oil dry.
■Full plate and warping paperboard printing can be realized with a full vacuum paper delivery system. There is no need to leave traction allowance on both sides of the paperboard to reduce paperboard waste.
Function of Drying Department:
■Separated vacuum transport,to insure the transport precision
■Help drying,suitable shining slotting and die-cutting,good match quality
■The adjustable drying temperature control system
■Adopt the infrared ray way (ultraviolet ray optional match) to quickly dry the water-based ink on the surface of the printed matter, avoiding the appearance of dropping ink and affecting the glazing effect.
■The drying system would not cause a fire when an emergency stop happens, and you can adjust the drying width according to your need to save electric power.
Function of Varnishing Department:
■The structure of this unit is the same with printing unit, and it also can be called the 7th printing unit. Both water-based varnish oil and UV varnish oil can be used

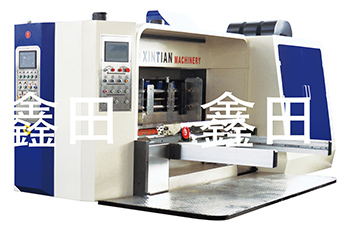

Function of Die-cutting Department：
■ Independent servomotor drive and control, automatic return-to-zero, and printing precision would not be affected by cutting force.
■ Automatic speed difference compensation device, linear speed difference due to abrasion of anvil mats can be compensated automatically, which ensures the same linear speed between
tool cylinder and anvil cylinder as well as die-cutting precision.
■ Anvil trimmer and automatic transverse transfer of anvil cylinder can prolong lifespan of anvil mats effectively.
■ The glue roller cuts the trimming mechanism and the cushion could be used for many times and save the use cost to a great deal.
|
