| BZJ1300Q-2 automatic flute laminator |
Main Technical Parameter:
| Model |
Unit |
BZJ1300Q-2 |
BZJ1450Q-2 |
BZJ1600Q-2 |
| Max. Sheet size |
mm |
1300 300 |
1450 300 |
1600 300 |
| Min.Sheet size |
mm |
320 50 |
320 50 |
320 50 |
| Speed |
m/min |
0-90 |
0-90 |
0-90 |
| Total electric consumption |
kw |
7 |
7 |
7 |
| Overall Dimensions |
mm |
8800 200 7 00 |
8800 350 7 00 |
8800 500 7 00 |
| Weight |
T |
3.5 |
4 |
4.5 |
Main chracteristics:
● Turnup bridge plate is convenient for cleaning, discontinuous wate-circulating system ensures washing clean.
● Automatic feeding for bottom sheet, manual feeding for top sheet (feeding from side for top sheet is optional).
● Flexible front register, bottom sheet is not exceeding the top sheet, and its adjustable for the front-and-rear lamination between bottom sheet and top sheet.
● Bottom sheet can be paperboard more than 350gsm, A/B/C/D/E/F corrugated cardboard.
● Lntelligernt control and compacted energy-saving and controlling play 1rom the stack of paper.
● Using high-precision plastic block device, sace glue.

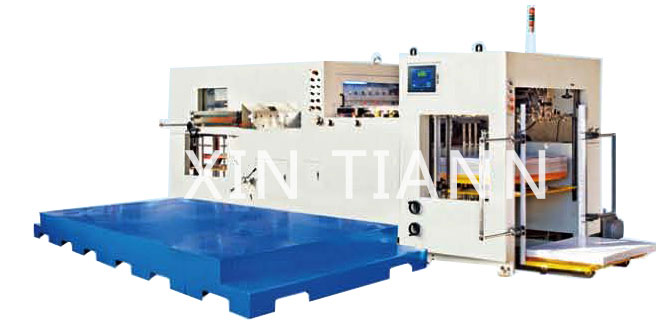

Automatic die—cutting and creasing machine
Special equipment applying to die—cutting of advanced colored boxes made of paper.The machine combines several advantages over many other die-cutters both at home and abroad. Gripper bars with high intensity are applicable to all kinds of cardboard,paperboard and corrugated paper.Frontal,back and side registration mechanism ensure great precision of die-cutting. Other parts are adopted such as intermittent mechanism with high precision,air clutch,pneumatic locking mechanism,programmable controller and man-machine interiace.The interface can display various digital information of machine such as working speed,amount of paper processed,total running time,etc. It is easy to eliminate troubles according to the display oi trouble shooting. Transducer is adopted to control the main motor in achieving stepless speed variation.The machine has a lot of sensors and sale-enusring devices to guarantee the safety oi operator and environment.Pressure is easy to be adjusted.lt can also realize die cutting without clipper margin.AII these performances make the machine prominent in high quality and low price among similar products.

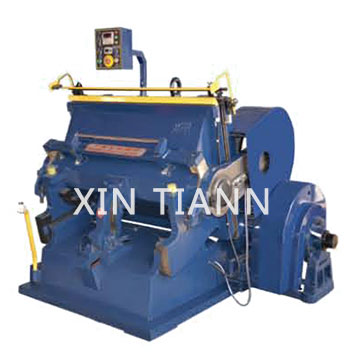

PYQ Series Of Creasing Cutting Machine
|
| Model |
Inside size |
Creasing
length |
power |
Weight |
Overall size |
| 930 |
930 70mn |
<25m |
4.0kw |
3000kg |
1800 |
550 6 50mm |
| 1100 |
1100 00rrm |
<32m |
5.5kw |
4500kg |
1860 |
760 7 00mm |
| 1200 |
1200 30nm |
<35m |
5.5kw |
4800kg |
2100 |
950 7 50mm |
| 1300 |
1300 20rrm |
<45m |
7.5kw |
6000kg |
2200 |
200 7 50mm |
| 1400 |
1400 000mn |
<45m |
7.5kw |
6800kg |
2300 |
200 7 50mm |
| 1500 |
1500 050rrm |
<45m |
7.5kw |
7500kg |
2400 |
200 8 00mm |
|

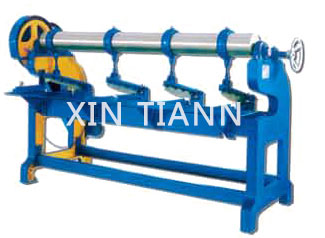

Four Knife Solter machine
 |
|
1.Sliding bearing are made oi high quality alloy cooper, thus to get effect oi anti-friction and shake reducing.
2.Flywheel is with big moment and large pressure.
3.Body adopts excellent material and whole casting, high strength and good rigidity.
4.Single piece electromagnetic clutch, quick action and reliable.
5.With single piece pressing and continuous cutting and delay time, time-delaying is adjustable.
6.Easy operation and reasonable design and pressing frame opening angle is large.
7.Concentrate lubrication system to ensure good lubrication and reduce damage.
8.Safety system is reliable.
9.Electric system is CE designed.
|
| Super Degree Is From He Motive |

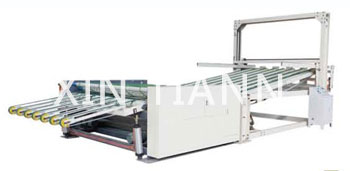

Stacking stripping |
 |
 |
