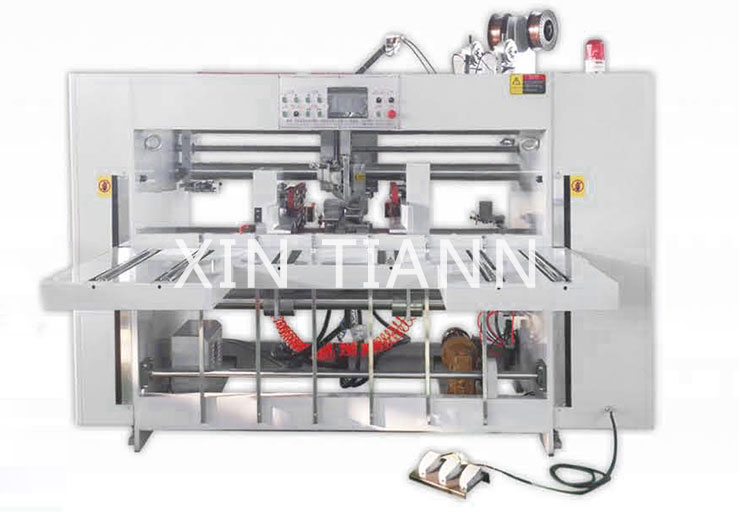

2000D Small Double Pieces Four Servo Driving Semi Automatic Stitcher

Specification：

Model and parameter SDJ-2000D
Max/feeding size (A+B) *2 (mm ) 3200
Min.ieeding size (A+B ) *2 ( mm ) 1060
Max.carton length A mm 1480
Min.carton length A mm 320
Max.carton width Bmm 1280
Min.carton width B mm 120
Max/feeding height (C+D+C) ( mm ) 2500
Min.feeding height(C+D+C) (mm) 250
Max.swing top size C ( mm ) 560
Min.swing top size C (mm ) 50
Max.heightD (mm) 2000
Min.height D ( mm ) 150
Max.nail tongue width (mm) 45
Nail space mm 30-150

Feeding section：
● French imported Schneider four servo driving motor with high precision, mechanical transmission parts reduced as well as the mechanical failures.
● Two-way baffle at front and back, can stitch uncover box, small box and color box. It can stitch single nail carton, double nail carton, and abnormal shape carton.
● Automatic wire feeding system, 20kg flat wire, alarming when wire used up, save time greatly.
● Speed: 600nails/min
● Four servo driving motor used in this machine (two machine head motors and 2 for controlling nail space).
● Isolating transformer can protect all the electrical equipment of the machine.
