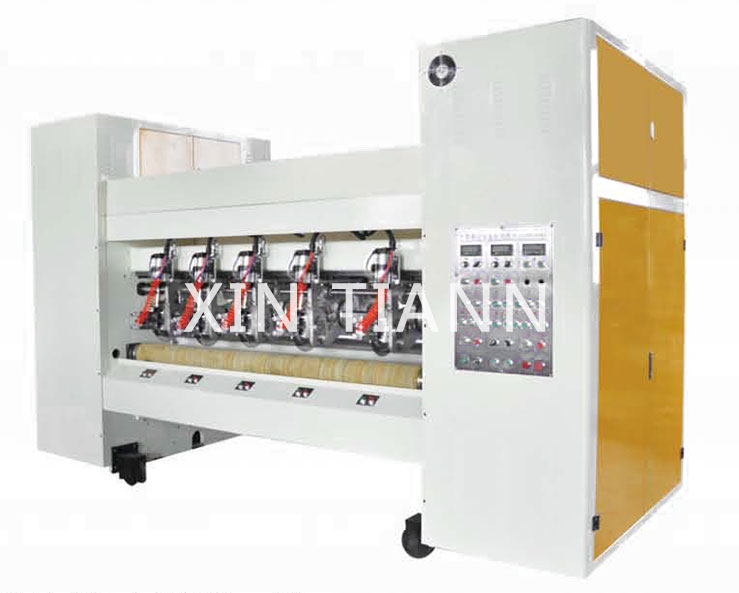

NC Thin Blade Slitter Scorer
Specification：
Model 1800 2000 2200
Machine dimension (mm) 3800 700 340 4000 700 3 40 4200 700 340
Power (KW) 16 16 16
Max slitting width (mm) 1800 2100 2400
Min slitting width (mm) 140
Min scoring width (mm) Common model 130
Scoring height (mm) 0-10
Blade (mm) Φ 200 × 122×1.2
Φ 260 × 158 × 1.2
Blade & Scoring Composed Type Four blade Six Scoring/ Five Blades Eight scoring

●Degsin speed:200m/min,250m/min.Width:1400mm-2500mm
●Memory of 999 order,non-stop changeover or manual change over can be realized.
●Change over quickly, with In 3 to 8 second s. Application of two machines can realize non-speed reduction changeover.
●Automatic synchronize with the corrugaed line and can also get in line with manufacture management system.High compatibility.
●High quality imported industry computer and PLC equipped composing the CMC system.
●There are Three types of scores:concave-convex(single wall),concave-convex(double wall) and convex-flat,which can also be alternated with electrical system Scoring can also be computer controlled tith fine scoring results.
●Thin tungsten steel alloy blade,sharp and long life of over 8 million meters.
●Computer controlled auto grinding and manual grinding also applicable.Alternative grinding the blade when slitting The board,it can increase efficiency.
●Imported synchronous belt applied for conveying with higher precision,longer life and lower noise.
