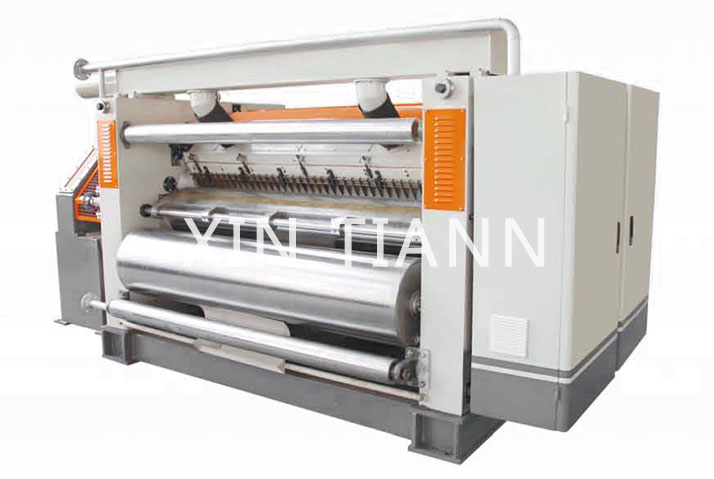

SF-320C(360C) Fingerless Type Single Facer

●320C Design Speed: 150m/min 360C Design Speed:180m/min
●Effective width: 1400mm-2200mm
●Corrugated roller:Φ320mm/360mm
●Drive reducer box with oil Immersed type lubricating to reduce noise keep running stable, adopt gimbal transmission. separate power.(optional)
●Corrugating roller, pressure roller and glue roller by pneumatic adjustment.
●Cardboard transmit adopt vacuum suction method, with wind control system, keep flute profiles stable of the lower-roller in the condition of running up.
●Bearing of corrugated and pressure roller adopt high temperature lubricate grease.
●Glue parts auto supply glue circularly.
●The upper-lower corrugating roller are made of 48C_ high quality alloy steel, after heat-treatment. The hardness HV1200,the surface be grinded.
●The glue part surface are Treated by special mesh snicked and chromeplated.
●Motorized or manual glue width dividing to match the paper width.
●Glue part can be running independently or non-independently while stopped.
